Calibration Test Pump LPP 30
- Calibration Test Pump LPP 30, pneumatic operated to generate pressure up to +35 bar / +500 PSI
- Switchable to generate vacuum up to -0.95 bar / -28 inHg
The Calibration Test Pump LPP 30 is
used to generate pressures and vacuum
for checking, adjusting and calibrating
mechanical and electronic pressure
measuring instruments by comparative
measurements.
Included in standard supply:
- Calibration Test Pump LPP 30
- Connection tube with 1/4" BSP female port
- Operating manual
We offer complete pressure calibration systems "LPP-KIT" with

- Calibration Test Pump LPP 30
- Carrying case
- Precision Reference Pressure Gauge
Pressure Calibration System LPP KIT
with Calibration Test Pump LPP 30
with Carrying Case
with analogue reference gauge LPP-MANO, 1.0% FS
Datasheet
Pressure Calibration System LPP KIT
with Calibration Test Pump LPP 30
with Carrying Case
with digital reference gauge DTG-35, 0.5% FS
Datasheet
Pressure Calibration System LPP KIT
with Calibration Test Pump LPP 30
with Carrying Case
with digital reference gauge TDMC, 0.2% FS
Datasheet
Pressure Calibration System LPP KIT
with Calibration Test Pump LPP 30
with Carrying Case
with digital precision reference gauge TLDMM,
0.05% FS
Datasheet
These pressure tests may be carried out in laboratories, workshop or on site at the
measuring point. If the instrument under test and a sufficiently accurate reference
measuring instrument (e.g. electronic pressure calibrator LPC 300, accurac 0.025%
FS) are connected to the LPP 30, the same pressure / vacuum is applied to the two
instruments when the pump is operated.

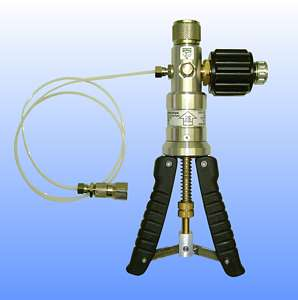

Despite its compact dimensions, the calibration test pump LPP 30 is easy to operate
and allows for exact generation of the required test pressures. A change-over switch
enables the generation of vacuum as well. The LPP 30 is fitted with a fine adjustment
valve for the precise adjustment of pressures. The reference instrument is screwed
directly on to the top of the pump and the unit under test is connected by means of a
connection tube incorporating an adapter (exchangeable) 1/4" BSP female port.
Optional accessories:
- Set of BSP adapters 1/8", 3/8" and 1/2" and set of seals
- Set of metric adapters M12x1.5 and M20x1.5 and Minimess, and set of seals
- Set of NPT adapters 1/8", 1/4", 3/8" and 1/2" and set of seals
- Carrying case with foams
- LPP-MANO analogue reference pressure gauges Accuracy 1% FS, Ranges 0-2
bar (0-30 psi), 0-11 bar (0-160 psi), 0-25 bar (0-365 psi), 0-40 bar (0-600 psi) with
fine graduation
- Spare part: test tube with 1/4" BSP female port
- Spare part: fine adjustment valve with relief valve
- Service kit for LPP 30: o-rings, seals, etc.
Data Sheet

Complete calibration system with LPP 30 and Reference Gauge
