Electronic Pressure Calibrator TLDMM
Digital Reference Presssure
Indicator Type TLDMM
(electronic Pressure Calibrator)
- Accuracy ±0.05% FS
- Pressure ranges up to 2000 bar available
- Battery operated (1 year autonomy)
- Pressure units "bar", "mbar", "psi", "MPa",
"kPA" selectable
- PEAK-function (positive and negative)
- Programmable digital Filter
- Pressure connection 1/2" BSP male
- Large and clear LCD display
- Including  S.I.T. Calibration Certificate,
The pressure calibrator TLDMM is a microprocessor based digital pressure
gauge, made of particularly high long-term stable analogue section and a 16 bit
A/D converter which ensure 65,000 internal divisions. These features, together
with a 0.05% accuracy class, make it ideal as a laboratory instrument: in fact the
pressure calibrator TLDMM is proposed as a first line sample for Calibration
Laboratories and is provided with a S.I.T. calibration certificate, traceable to
international standard.

The pressure calibrator TLDMM has internal batteries with 1 year autonomy, also
guaranteed by the Auto-PowerOff function, which activated if no measurements
changes are detected in the previous 30 minutes.

The user can select different engineering units (bar, mbar, psi, MPa, KPa),
resolution and digital filter, suitable for measurements to be performed. In order
to increase the level of integration among components, a combined (traditional
and SMT) technology has been used, that makes this reference pressure gauge
more resistant against mechanical stresses and vibrations and guarantees
maximum reliability for the circuit. The display also shows an analogue indication
bar for pressure, that is still on, even in the programming menu.

As an option, the pressure calibrator TLDMM is available with a RS232 interface.
A connection cable and a simple Software to read out the RS232 interface can
be supplied on request.

A carrying case and a S.I.T. calibration certificate are included in standard supply.

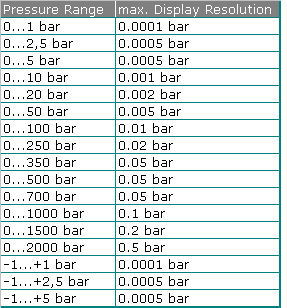

Ranges and max.  Display Resolutions:
Data sheet

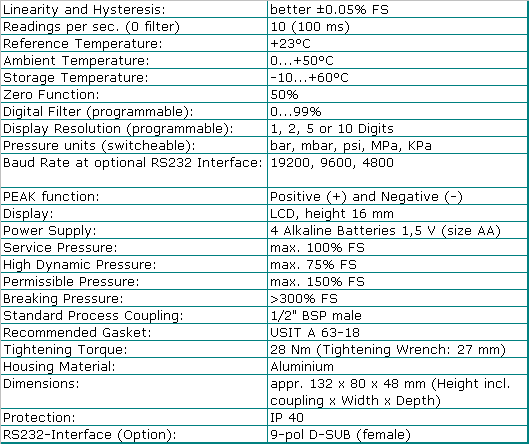

Technical Data:
