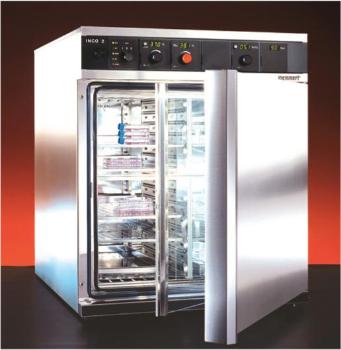

CO2- Incubators (Model INCO2)

Standard Features:

- 3 models sizes 108, 153 and 246 litres
- temperature range +20°C up to +45°C
- CO2 adjustable from 0% up to 20% with a setting accuracy of 0,1%
- 2 connections with automatic change-over device for gas bottles
- CO2 infra-red absorption system with automatic zeroing
- large-area heating on all sides
- integrated sterilisation stage at +160°C (set point wait dependent) for 2 hours -
sterilisation (NOT DISINFECTION) without removal of sensors
- doubled overheat safety by microprocessor overheat controller, adjustable (TWW) and
temperature limiter TB safety device class 3.1 and class 1 according to DIN 12 880
- stainless steel 1.4301, interior electropolished
- serial interface RS232 incl. MEMMERT-software „Celsius 2000“ or optional RS485 (no
extra charge)
- parallel printer interface for connection of an EPSON -compatible printer for
documentation in accordance with GLP (Good Laboratory Practice)
- works calibration certificate for one temperature: +37°C
To avoid condensation the MEMMERT-CO2 incubators are additionally provided
with:
- integrated humidity limit control with digital display of relative humidity adjustable from 88-
97% rh
- option against extra charge: active humidity control adjustable from 40 to 97% rh via
LED display – water shelves are omitted
- additonal door heating
What are the most important advantages of the MEMMERT-CO2-incubators?

- electropolished stainless steel interior
- integrated sterilisation cycle at +160°C for two hours (sterilisation - not desinfection or
decontamination – means that all microogranisms including spores are killed
- no sensors, shelves, mountings, etc. have to be removed during the sterilisation cycle
- LED-humidity display exactly shows the set and actual humidity inside the chamber
- time is money: integrated fault diagnostics for temperature, CO2, humidity limit control or
resp. humidity control for fast repair
- NDIR-CO2 sensor with auto-zeroing which compared to the thermal conductivity sensor
has the advantage that immediately after switching on the CO2-incubator the CO2 is
reliably measured and indicated on the display. TC-sensors require the stabilising of the
temperature inside the working chamber.
- continuous gas supply by integrated automatic gas cylinder change-over (standard)
- double overheat safety device  according to safety standards DIN 12880 – adjustable
electronic overtemperature controller safety class 3.1 and temperature limiter class 1
- GLP-conforming documentation can either be done through printer – parallel printer
interface– or via PC – RS 232 alternatively RS 485 including software Celsius 2000
without extra charge both being part of the standard delivery scope
- last but not least works calibration certificate at 37°C also included in standard
The rapid development in „biotechnology“ requires appliances which can keep pace with
it. MEMMERT CO2 incubators had been developed for this purpose and will also meet
these standards in future due to a close cooperation with those people working directly in
this field.
